Building Information Modeling, or BIM, has been a revolution within the Architecture, Engineering, and Construction (AEC) industry.

With BIM, teams can spot issues before they become problems, avoid expensive errors, and work more efficiently across the entire project lifecycle. BIM gives architects the ability to test various models for a building. This process helps refine the design to achieve sustainability objectives prior to construction. One of the most important aspects of BIM is the Level of Development or LOD. LOD is a structured guideline that outlines the expected level of trust and specificity of data included in a BIM model.

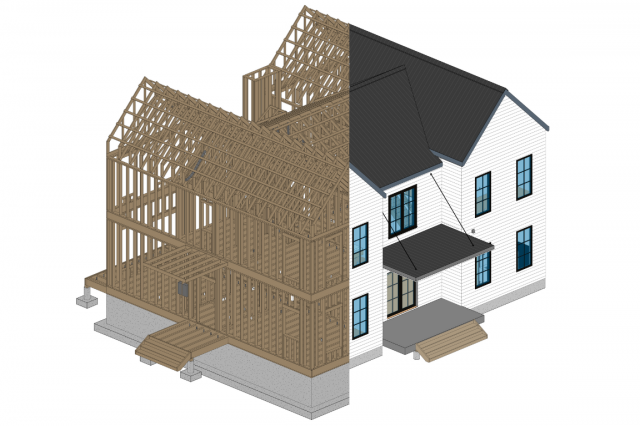

Photo bim-services-provider.com

Understanding BIM Level of Development

BIM Level of Development provides a consistent means to define, represent, and share information in Building Information Modeling. It sets the level of reliability expected at each phase of a project (planning, design, and construction). This system eliminates the guesswork. Today, architects, engineers, and contractors have a clear understanding of what they can expect from the model at each stage.

The LOD encourages the fullest possible shared understanding between all stakeholders. This level of clarity goes a long way to avoid miscommunications and expensive errors. LOD is about communication. It maximizes efficiency by making sure that the right information is delivered to the right people at the right time.

LOD levels (100 to 500)

LOD 100

LOD 100 is the simplest LOD stage in Building Information Modeling (BIM). At this level, models are used only to give a concept or symbolic idea of what the project may be. Consider it a concept design, or an idea on paper.

The data can tell you about general form, size, and orientation without getting into minutiae. For example, a building's model at LOD 100 might display its general footprint—say, a 50 by 30-foot rectangle—without specifying wall thickness, materials, or window placements.

Most commonly, it's used for a quick estimate during the initial design stage, where decisions are still being made based on feasibility and general scope.

LOD 200

LOD 200 increases the level of detail by including non-specific, accurate context. Here, you're working with much more high-level stuff, which are generic, approximate outlines, dimensions, quantities, and locations.

A wall at LOD 200 would show the height and length, for example. It's not going to get down to what the actual material or finish should be. If you decide to model a 10-foot-high partition wall, it will appear in the model.

It wouldn't be able to include information such as insulation or paint color just yet. This level is especially valuable for early-stage cost estimation and design evolution.

LOD 300

At this level of development, accuracy is the first priority. Models today show things like walls and windows with the correct materials, dimensions, geographic coordinates, assemblies, etc.

At this LOD, a window opening would expose its true dimensions—say, 5 by 4 feet. It further shows its exact position in the wall. Structural beams, HVAC ducts or plumbing fixtures would be shown exactly as they would be placed in the real world.

This level is usually the minimum required for construction documents, permitting and coordination between disciplines, such as structural and mechanical teams.

LOD 350

LOD 350 extends LOD 300 by adding the details of connections and interfaces between systems. Next, you'll dive into how these various elements interact with one another.

For instance, look at the way a beam connects to a column, or the way a duct runs through a wall. For instance, a door frame at LOD 350 would show information such as anchoring points and thresholds.

This level is critical for clash detection, making sure systems come together without collision before construction work begins.

LOD 400

Models today contain all the information required for manufacturing and installing the elements contained within. For instance, a steel beam will have exact dimensions, material specifications, and bolt-hole placements.

Contractors are able to utilize this information to directly fabricate components off site. This is especially useful in projects with extensive use of prefabrication, where a high degree of precision is required for smooth installation in the field.

LOD 500

LOD 500 is the ultimate stage, depicting as-built conditions. Models are field-verified and entail operational data. A mechanical system at LOD 500 shows its place of installation.

It further lays out specific information such as the maintenance plan, serial numbers, and performance specs. Nevertheless, LOD 500 models are increasingly utilized for facility management and long-term operations.

It's the highest level of detail and truthfulness, guaranteeing that the model reflects the physical structure perfectly.

Benefits of Using LOD in BIM Projects

Photo https://bimservices24.com/

There are many advantages to using the Level of Development (LOD) in Building Information Modeling (BIM) projects. These benefits significantly improve the likelihood of success in a construction project. LOD establishes transparent, definitive parameters for what information is to be included at each level.

This level of clarity fosters better communication and greatly improves collaboration across all stakeholders. Having a common understanding—between architects, engineers, contractors, and even owners—of the scope and level of detail associated with the model helps minimize assumptions and miscommunication. For instance, a LOD 300 model can allow a designer to move forward and produce details for door placements and sizes.

This is so that contractors have a clear understanding of where and how the doors get installed. This mutual clarity creates smooth collaboration, which is crucial on intricate projects.

Perhaps the second most important benefit is error and rework mitigation. Since LOD takes a systematic approach to establishing the level of detail in a model, it provides clarity and accuracy. At LOD 300, for example, a model is capable of generating construction drawings with a high degree of accuracy, resulting in less on-site error.

LOD further improves clash detection and coordination. By enriching the 3D model with additional layers of information, teams can spot potential problems and address them.

Cost estimation and quantity takeoffs are something that greatly benefit from LOD. The rich information included in higher-level LOD models, like LOD 350 or LOD 400, enables accurate material takeoff calculations. That level of precision allows project managers to allocate resources more efficiently and avoid material shortfalls or excess.

For example, knowing exactly how much steel is needed for a frame avoids unnecessary expenses and ensures better financial planning.

LOD enhances informed decision-making by enabling detailed visualization. Since a model with LOD 300 or higher can provide realistic visuals, it helps all stakeholders better understand the design intent. That clarity is worth its weight in gold when it comes to weighing design alternatives or showing plans to clients.

Finally, LOD makes the construction process more efficient. Armed with a detailed, accurate model, teams in the field will have all the information they need to proceed with confidence, minimizing downtime and increasing productivity.

This is most pronounced on projects that employ the use of prefabrication where LOD 400 models direct the exacting fabrication and assembly of elements. Whether it's a residential development or a large-scale commercial project, the structured approach of LOD minimizes bottlenecks and keeps everything on track.

Applications of LOD in Different Project Phases

  1. During the design phase, LOD is invaluable to facilitate conceptualization, visualization and design analysis. At LOD 100, the model only conveys a general sense of the project's size and scale. This type of information is great for early cost estimation and budgeting.
  2. Then architects and engineers can more easily get to work building on that initial framework. This simplicity enables them to forecast costs and resources with greater accuracy. Moving into LOD 300, the model is still detailed but now can provide production-ready construction drawings. These drawings allow teams to visualize the project while making better decisions in the early stages, minimizing the risk of expensive changes in later phases. For instance, a client is able to visualize exact floor plans and measurements, making sure their vision is in line with what's feasible in reality.
  3. In the construction phase, LOD means there are fewer clashes during coordination, fabrication, or installation, leading to a smoother process overall. This is because at LOD 350, teams achieve a deeper level of clarity regarding how various components will interact with one another, reducing on-site installation errors.
  4. Fabricators are big fans of LOD 400 models, as they tend to be explicit in direction to produce certain parts of real, physical projects.
  5. During the operation and maintenance phase, LOD 500 models are used. These models become critical for facility management, asset tracking, and planning future renovations. When a building is retrofitted, a comprehensive LOD 500 model is an indispensable asset.

Key Takeaways

  • BIM Level of Development (LOD) facilitates better communication and collaboration. It achieves this by providing a uniform standard of detail and information that should be included within BIM models. This is great for all stakeholders in the AEC industry.
  • LOD 100 through 500 is an increasing level of detail and precision. The idea is that LOD 100 is conceptual and the LOD 500 is field-verified as-built models.
  • Implementing LOD in BIM projects improves clash detection, cost estimation, and coordination, leading to reduced rework and better resource management.
  • LOD increases project efficiency at all levels. It provides the right amount of detail at the right time and does so throughout the life cycle of the project from design through construction and operation and maintenance.
